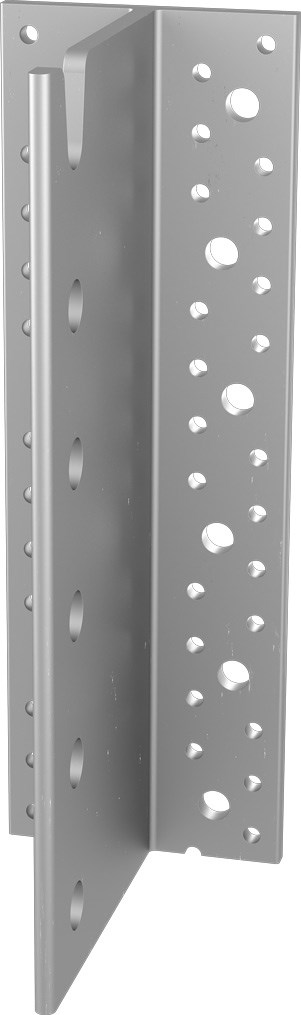

BEAM HANGER TYPE ALUMINIUM COMBINATION SD 12.0
Order no.: 30601
EAN: 4019346104309
Anwendungen
| Are you a customer or a new customer? (Specialist trade) | ||
| For more information about our products, orders, invoices and promotions, log in to our new shop system (account above). |
| Netto Gewicht Kg: | 35 |
| Made in Germany: | JA |
| Gruppe: | Balkentraeger |
| Statics diagram: | Balkentraeger |
| ETA: | ETA-16 0044 |
| Wide mm: | 80 |
| Height mm: | 120 |
| Depth mm: | 109,4 |
| Thickness mm: | 6,0 |
| Secondary beam2 Ø 13: | 3 |
| Secondary/main beam Ø 5: | 22 |
| Secondary/main beam Ø 9: | 6 |
| TopLine: | TopLine |
| Material: | AW 6060 |
| Use class: | NKL 2 |
| Application: | Holz/Holz+Holz/Beton |
