Profile anchor
Order no.: 286
EAN: 4019346165041
Anwendungen
Variant selection(All Orange marked in combination possible):
Are you a customer or a new customer? (Specialist trade) | ||
For more information about our products, orders, invoices and promotions, log in to our new shop system (account above). |
Netto Gewicht Kg: | 11,5 |
Made in Germany: | JA |
Gruppe: | Sonstige |
ETA: | EN14545 |
Wide mm: | 34 |
Length mm: | 140 |
Thickness mm: | 3,0 |
Secondary beam Ø 5: | 10 |
Secondary beam2 Ø 13: | 1 |
Type: | 1 |
Material: | S 250 GD +Z 275 |
Use class: | NKL 2 |
Application: | Holz/Beton |
1 -
7
from
7
Variants
ID | Quantity | Wide mm | Length mm | Thickness mm | Secondary beam2 Ø 13 | Secondary beam Ø 5 | Type | Material | Use class | Application | |||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
281 |
|
34 | 100 | 3,0 | - | 6 | 1 | S 250 GD +Z 275 | NKL 2 | Holz/Beton | ||
|
286 |
|
34 | 140 | 3,0 | 1 | 10 | 1 | S 250 GD +Z 275 | NKL 2 | Holz/Beton | ||
|
287 |
|
34 | 160 | 3,0 | 2 | 10 | 1 | S 250 GD +Z 275 | NKL 2 | Holz/Beton | ||
|
285 |
|
34 | 180 | 3,0 | 2 | 12 | 1 | S 250 GD +Z 275 | NKL 2 | Holz/Beton | ||
|
282 |
|
34 | 140 | 3,0 | 1 | 10 | 2 | S 250 GD +Z 275 | NKL 2 | Holz/Beton | ||
|
283 |
|
34 | 160 | 3,0 | 2 | 10 | 2 | S 250 GD +Z 275 | NKL 2 | Holz/Beton | ||
|
284 |
|
34 | 180 | 3,0 | 2 | 12 | 2 | S 250 GD +Z 275 | NKL 2 | Holz/Beton |

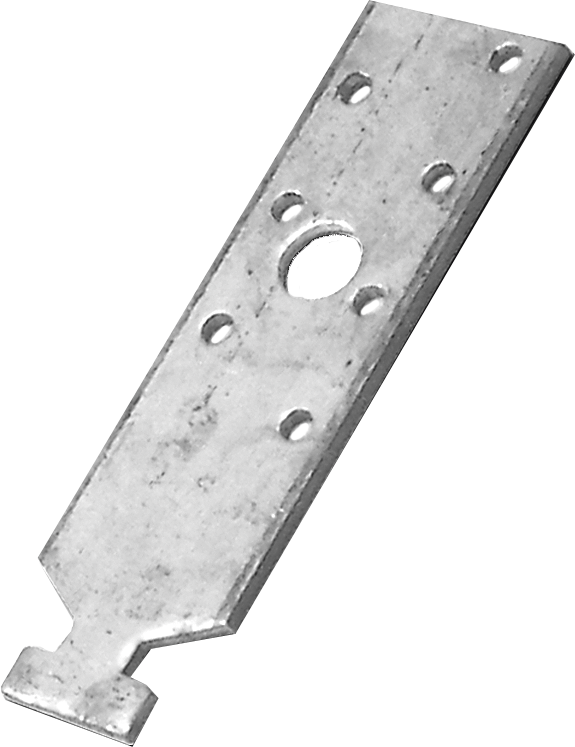

GH Profile-anchor
Gh profile-anchors are intended for fixing timber beams, rafters, purlins, etc. on anchor rails (e.g. Halfen cast- in channels).
